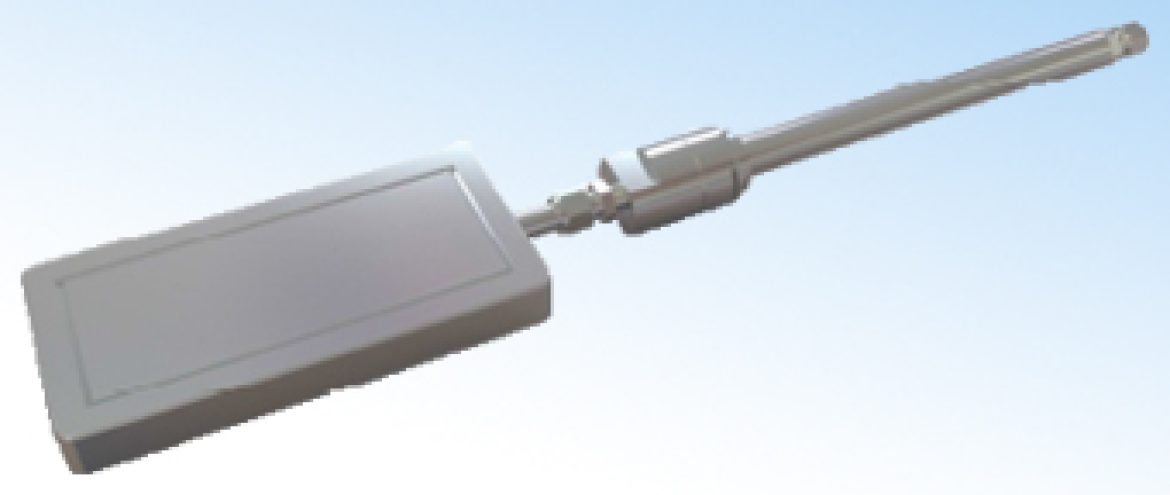

Fiber Optic load Cell – LC01
The Load Cell LC-01 consist of an oil filled TENSMEG (tension measuring gauge) for monitoring strand tendons, is a spiral strain gauge comprised of a Teflon® coated resistance pad connected to the pressure sensor P-01. When subjected to load, the oil inside the pad is pressurised and this pressure change is transfered to the pressure sensor.
Applications
- The load cell can be applied to measure underground loads & stresses
Features
- Fiber Optic Load cell with ranges from 0-1 up to 0-150 Bar
- Watertight and ruggedized housing, applicable in harsh environments
- Temperature compensation by means of an internal fiber optic temperature sensor
